ALI Certified and Validated Battery-Operated Mobile Column Lift

ML-4030BC

MAXIMUM LIFTING CAPACITY 66,000 LBS.
SPECIFICATIONS LISTED BELOW

Features

Specifications

Installation
and Parts

ALI Certified and Validated Battery-Operated
Mobile Column Lift.
Your assurance of quality and safety.

  • Expandable two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • Dual Mechanical and Hydraulic Safety locking systems

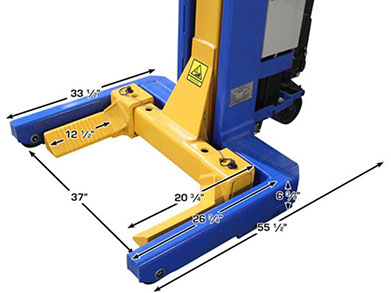

  • Multi-width wheel forks with locking pins accommodate the widest range of wheels eliminating the need for specialty wheel adapters

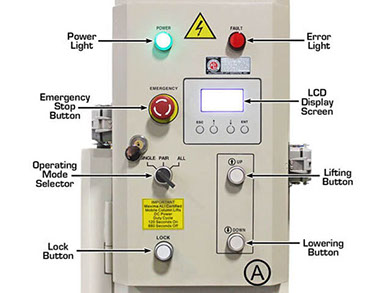

  • Smart electronics feature displays lifts height and self-diagnostics and self-calibration functions
  • Dual redundant PLC electronic synchronizing for level lifting
  • All electronic control system and hardware conforms to CE, CSA, ANSI, ASME, OSHA and UL regulations
  • Powder coated paint for extra-long protection
  • Solid one-piece column and heavy duty guide bearings for smooth operation
  • Manufactured using the latest laser and robotic processes
  • Electronic controlled trolley lock system for level columns
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Cabinet key lock included for each column
  • Industrial grade deep cycle gel batteries included
  • Auto charge feature for fast battery recharging
  • ISO 9001 and CE approved

MAXIMA's® 66,000 LB. Battery-Operated Mobile Column Lift System Specifications

Maximum Lift Capacity: 66,000 LBS. / 30,65000 KL.

Lifting Capacity Per Column: 16,500 LB. / 7,500 KL

Column Configuration: Single / Pair / Four

Max. Lifting Height: 67" / 170 CM

Lifting Time with Maximum Load: 95 Seconds

Lowering Time with Maximum Load: 100 Seconds

Carriage Type: Adjustable

Min Tire Diameter: 19" / 43 CM

Max Tire Diameter: 44" / 112 CM

Power Supply: Dual 12V Industrial Grade Deep Cycle Battery with 120V Battery Charging System

Power Unit: 24V DC Electric Hydraulic

Motor: 2.2 Kw 24V DC motor with two batteries per column

Shipping Weight Per Column: 1,600 LB. / 730 KL. each

Shipping Dimensions: 49"L x 47"W x 89"H / 125 x 119 x 226 cm

2 Year Limited Warranty

Battery-Operated Mobile Column Lift System

Battery-Operated Mobile Column Lift System Manual

Download

Shipping, Unpacking, Installation, and Operation Training Video

MAXIMA® 66000 LB. Battery-Operated Mobile Column Lift System Video
