Three-Phase Mobile Column Lift

ML-4022

MAXIMUM LIFTING CAPACITY 48,000 LBS.
Lifting Capacity per Column: 12,000 lbs.

Configuration: Set of 4 Mobile Columns

Three Phase Volt Power: 208/240 Volts

ML-4030

MAXIMUM LIFTING CAPACITY 66,000 LBS.

Lifting Capacity per Column: 16,500 lbs.

Configuration: Set of 4 Mobile Columns

Three Phase Volt Power: 208/240 Volts

ML-4034

MAXIMUM LIFTING CAPACITY 74,000 LBS.

Lifting Capacity per Column: 18,500 lbs.

Configuration: Set of 4 Mobile Columns

Three Phase Volt Power: 208/240 Volts

ML-6033

MAXIMUM LIFTING CAPACITY 72,000 LBS.

Lifting Capacity per Column: 12,000 lbs.

Configuration: Set of 6 Mobile Columns

Three Phase Volt Power: 208/240 Volts

ML-6045

MAXIMUM LIFTING CAPACITY 99,000 LBS.

Lifting Capacity per Column: 16,500 lbs.

Configuration: Set of 6 Mobile Columns

Three Phase Volt Power: 208/240 Volts

ML-6051

MAXIMUM LIFTING CAPACITY 111,000 LBS.

Lifting Capacity per Column: 18,500 lbs.

Configuration: Set of 6 Mobile Columns

Three Phase Volt Power: 208/240 Volts

Features

Installation and Parts

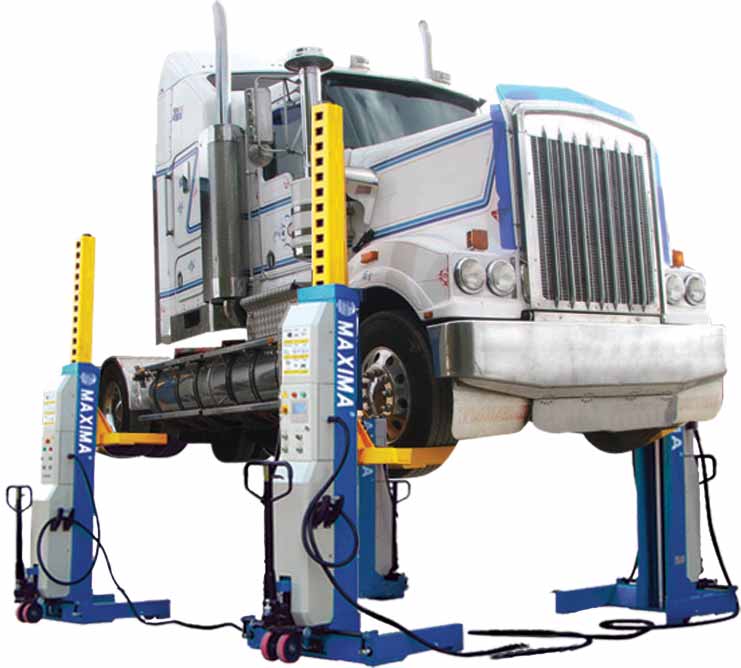

MAXIMA's® Three-Phase Power Mobile Column Lift:



  • Expandable two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • Dual Mechanical and Hydraulic Safety locking systems

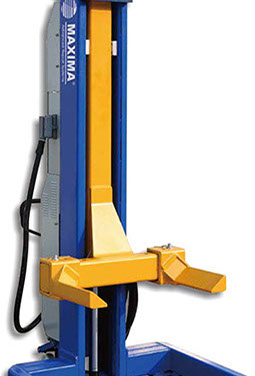

  • Multi-width wheel forks with locking pins accommodate the widest range of wheels eliminating the need for specialty wheel adapters
  • Smart electronics feature displays lifts height and self-diagnostics and self-calibration functions
  • Dual redundant PLC electronic synchronizing for level lifting
  • Powder coated paint for extra-long protection
  • Solid one-piece column and heavy duty guide bearings for smooth operation
  • Manufactured using the latest laser and robotic processes
  • Electronic controlled trolley lock system for level columns
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Cabinet key lock included for each column

MAXIMA's® Three-Phase Power Mobile Column Lift

Three Phase Power Mobile Column Lift System User's Manual for ML-4030B / ML-6045B

Shipping, Unpacking, Installation, and Operation Training Video
